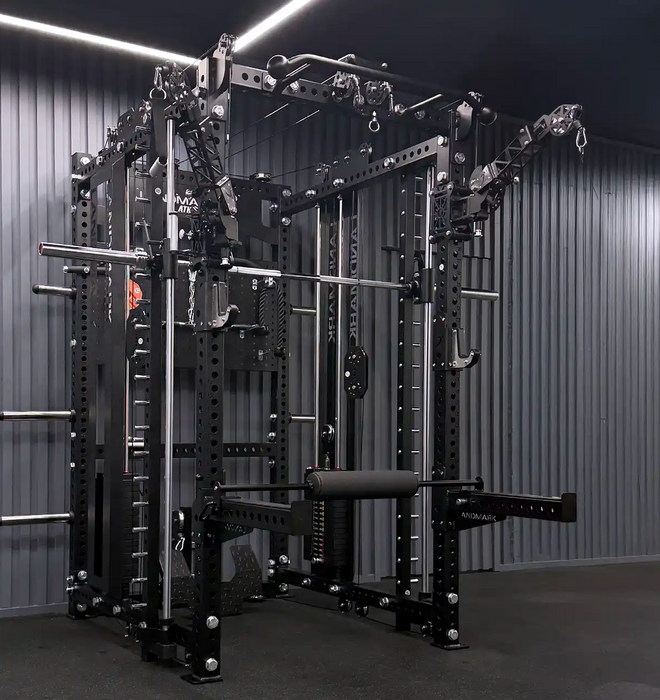

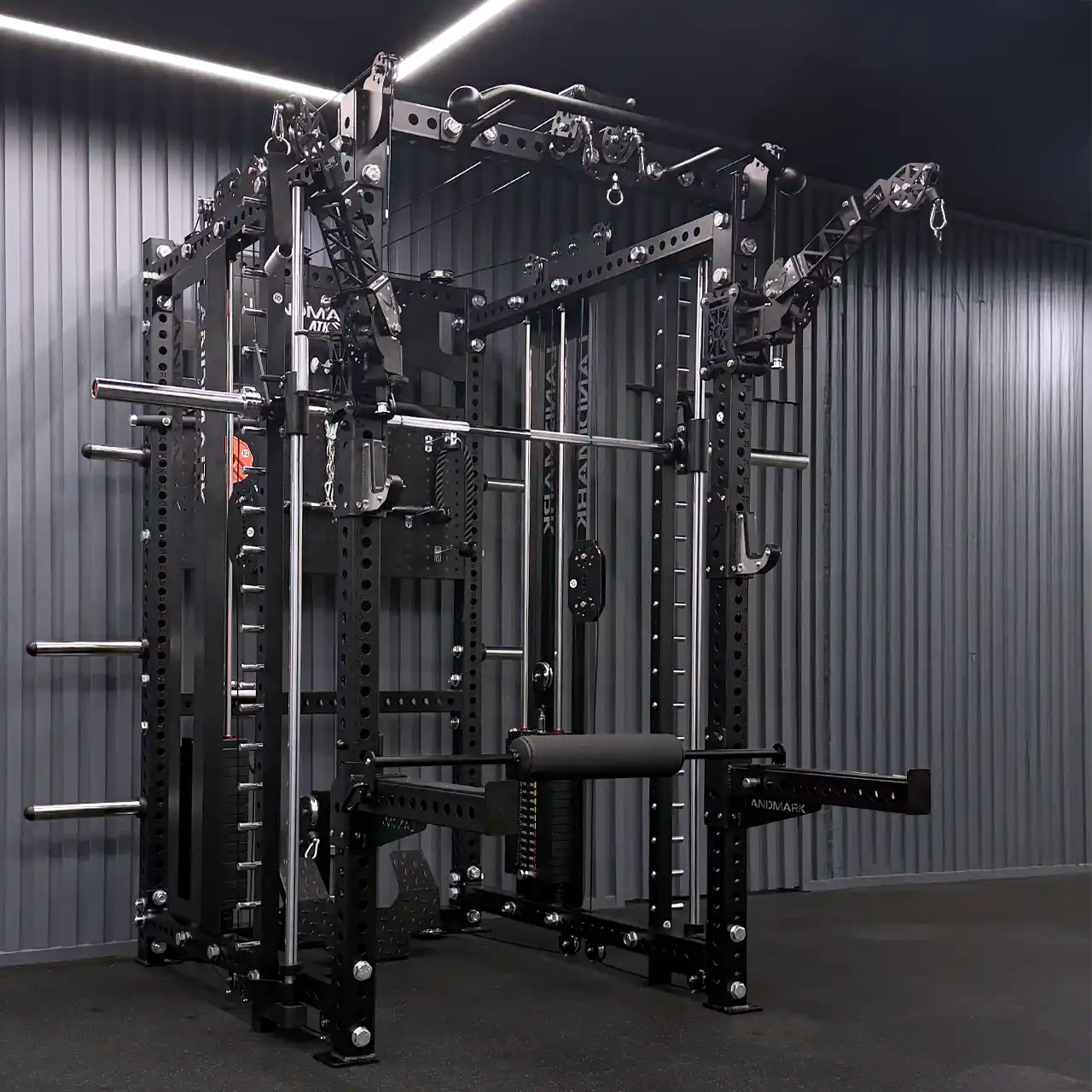

Landmark Everest All-In-One Home Gym

Overview

The Everest was designed around a standard most machines at this price don't pursue: the feel of a commercial machine in a home gym. Not the look of one. The feel: spacious under load, fast between exercises, built with material decisions that hold up to real daily training.

That meant making choices that cost more and don't show up on a spec sheet. How the cable path routes. Where the hardware mounts. What the pulleys are made of. The decisions that make a machine intuitive to train on for years, not just impressive on first setup.

    Key Features

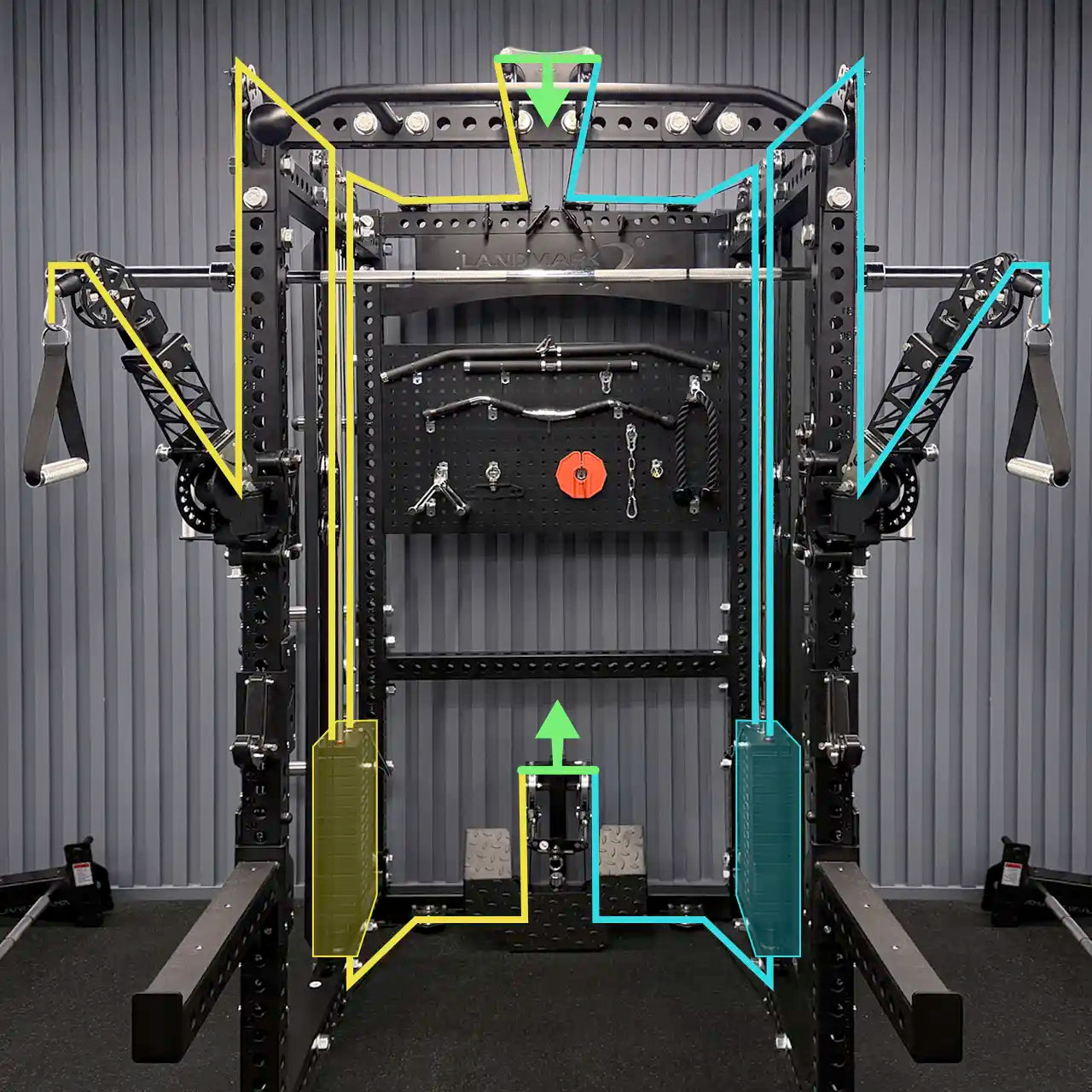

    1:1 Center Pulleys. Full Stack Every Pull.

    The Everest's fixed hi/lo center pulleys draw from both stacks at a virtual 1:1. Lat pulldowns, seated rows, and cable flys load the full 165 lbs. The standard 2:1 ratio is still there on the arms, right for smaller muscle group exercises and functional movements.

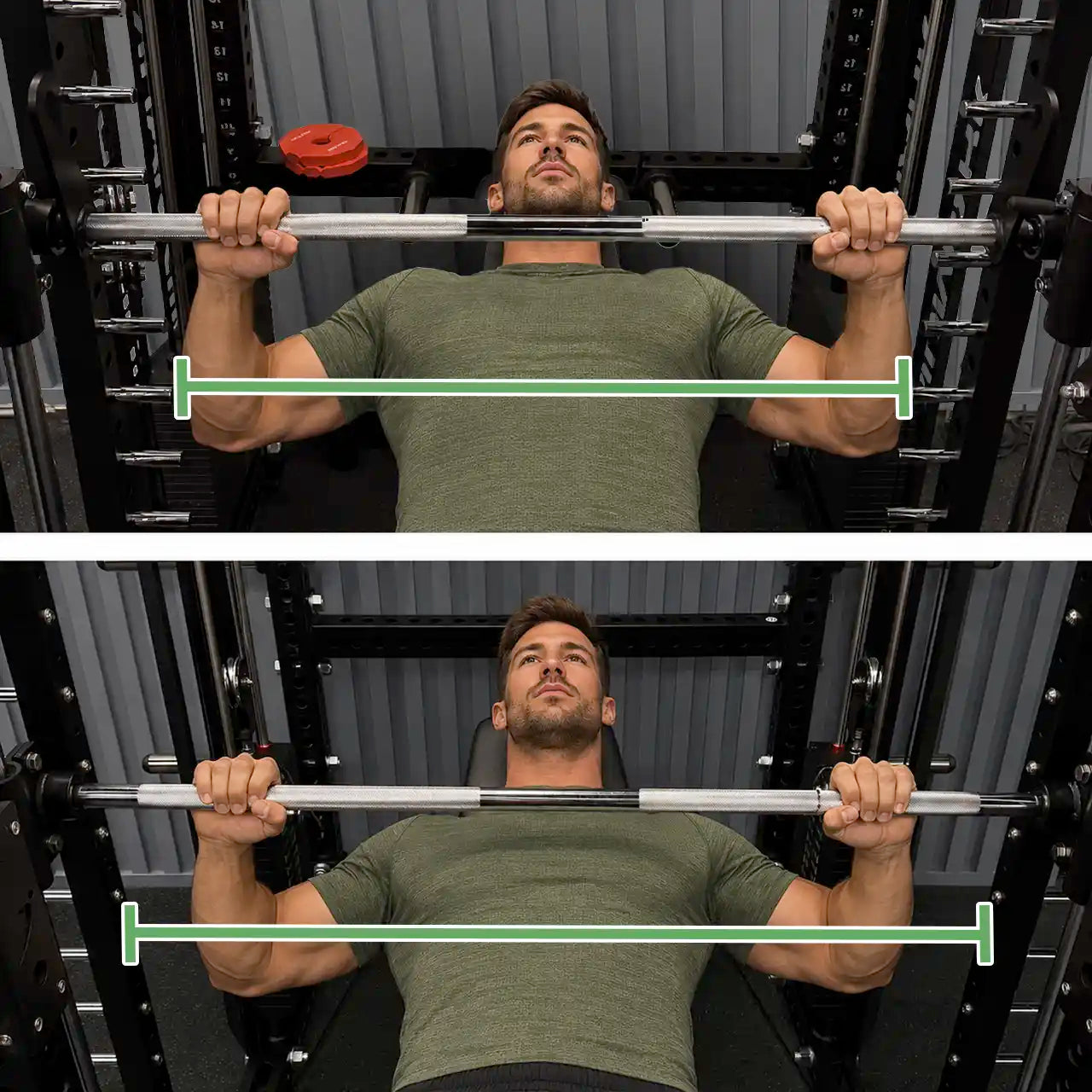

    Internal Space Built for Real Lifting.

    On most Smith machines, J-hooks sit inside the uprights. On overhead press and wide-grip bench, you feel it. The Everest mounts its hooks on the outside, so the full internal width stays open. No elbow contact, no stance adjustments, no working around the hardware.

    Smith Bar That Actually Goes Low.

    Most all-in-one Smith bars are built for racking and pressing. Floor-level movements fall outside what they can reach. The Everest's bar travels to 9.75 inches off the floor, covering hip thrusts, Romanian deadlifts, and floor presses without modification. The bar goes where the exercise needs it.

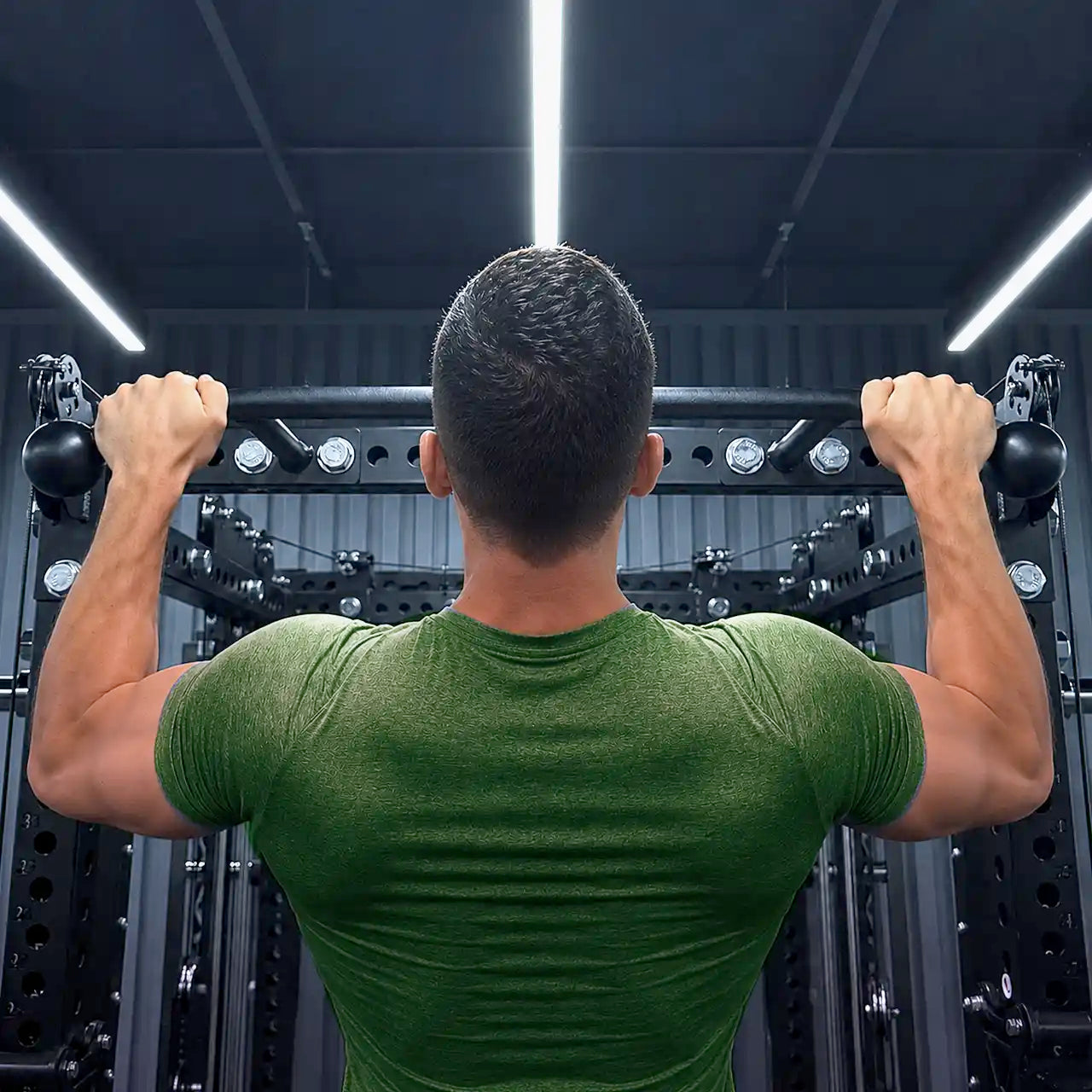

    90-Inch Pull-Up Bar.

    Most home gym pull-up bars top out at 85-87 inches. The Everest's bar gives taller lifters more room for a natural dead hang and full extension. Designed to feel closer to a commercial pull-up station than a home gym one.

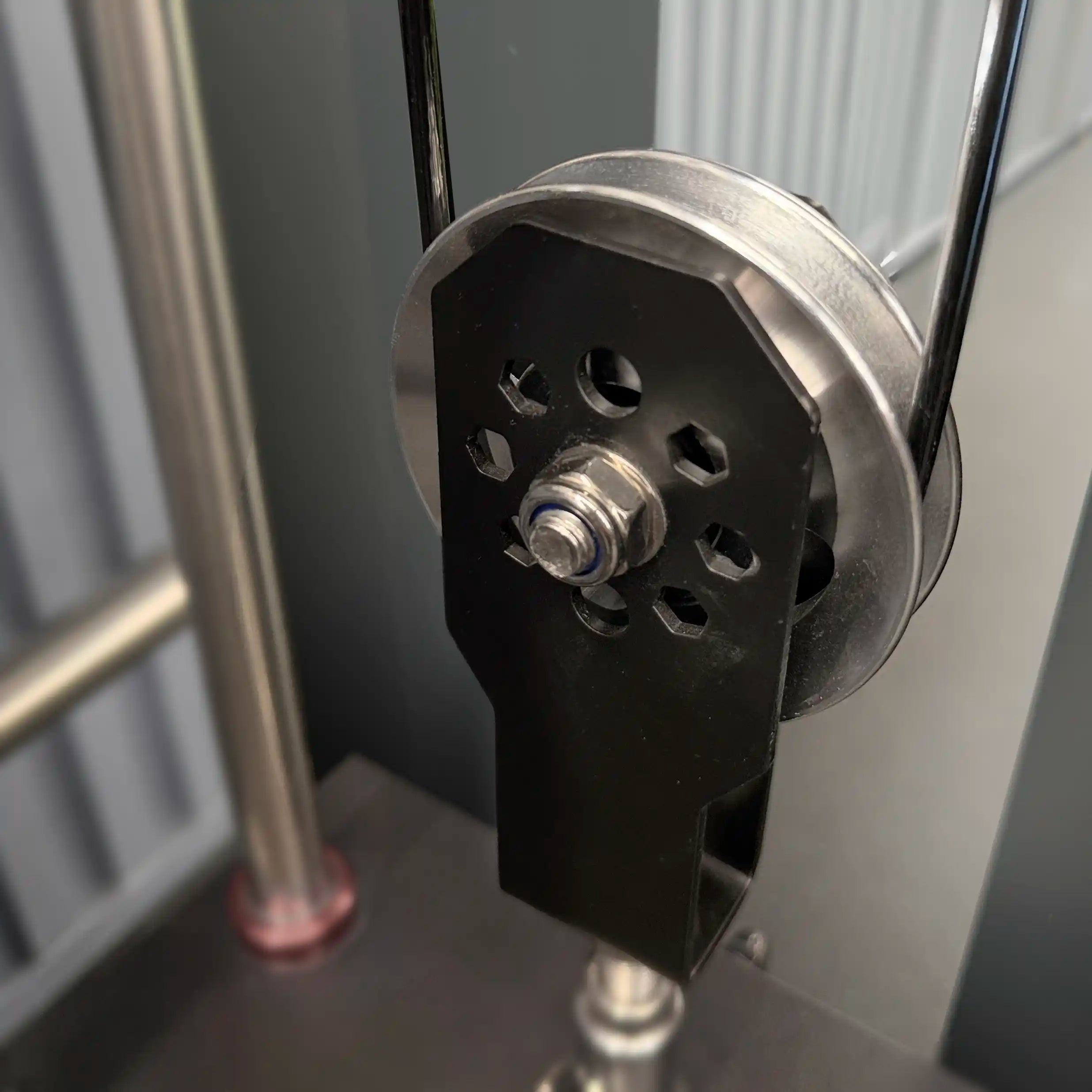

    Pulleys Built Around Fewer Revolutions Per Movement.

    Pulley diameter determines how many times the roller spins per cable pull. Smaller diameter, more rotations, more wear accumulated per session. The Everest's 4-inch aluminum pulleys with oversized high-grade rollers require fewer revolutions to complete the same movement. Less wear per rep means the feel on the first session is the feel two years in.

    Shrouded Stacks. Protected and Still Expandable.

    Exposed weight stacks create contact risk during heavy training: moving cables, spinning stacks, and pinch points. The Everest ships with full weight stack shrouds as standard. Centers stay open so weight stack pins can be added through the covers to increase load without removing them.

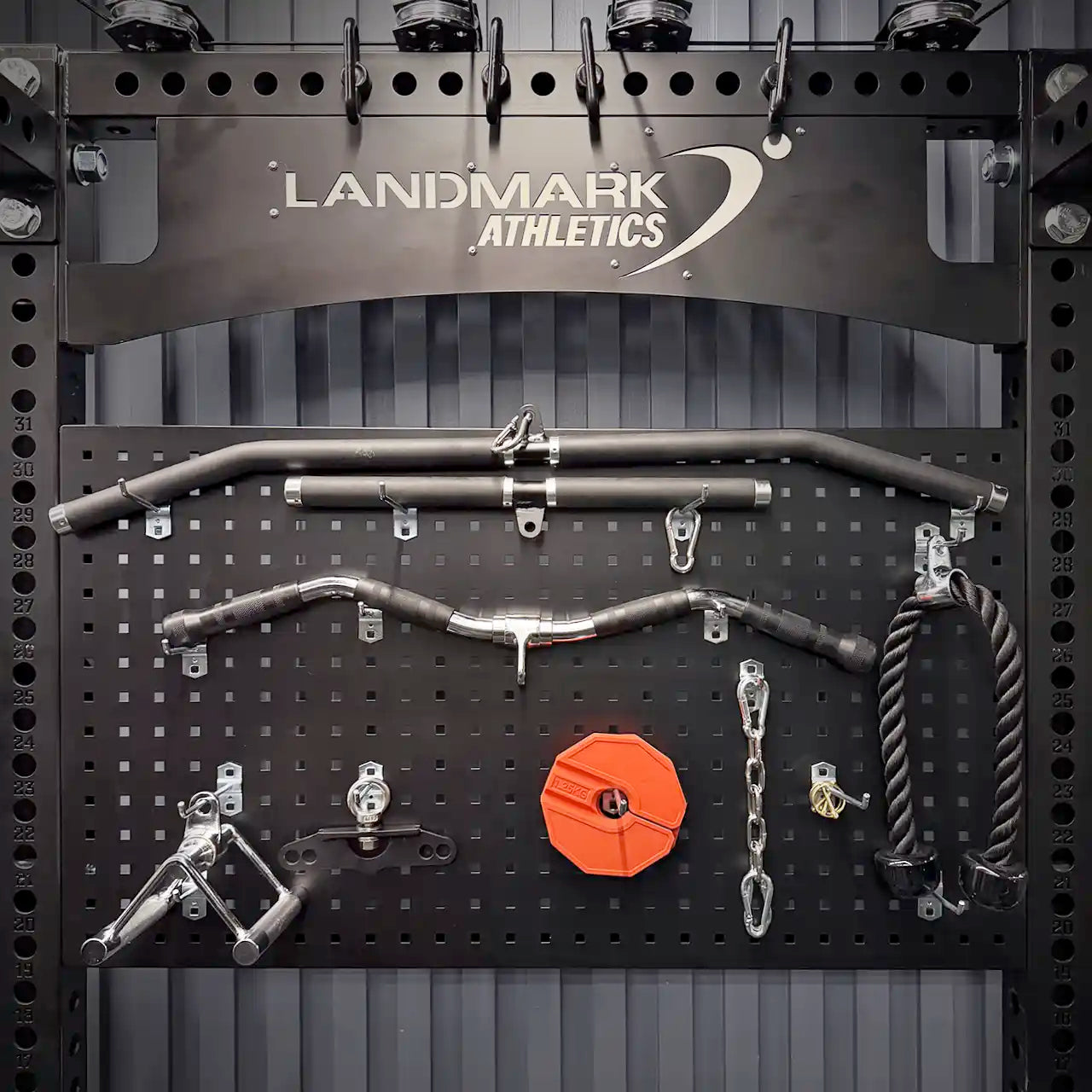

    Attachments on the Machine. Not on the Floor.

    Most cable setups collect attachments in a bin or pile next to the machine. Between sets you're searching through it. The Everest's rear pegboard mounts them directly to the frame, organized and within reach. No floor pile, no separate rack, no searching.

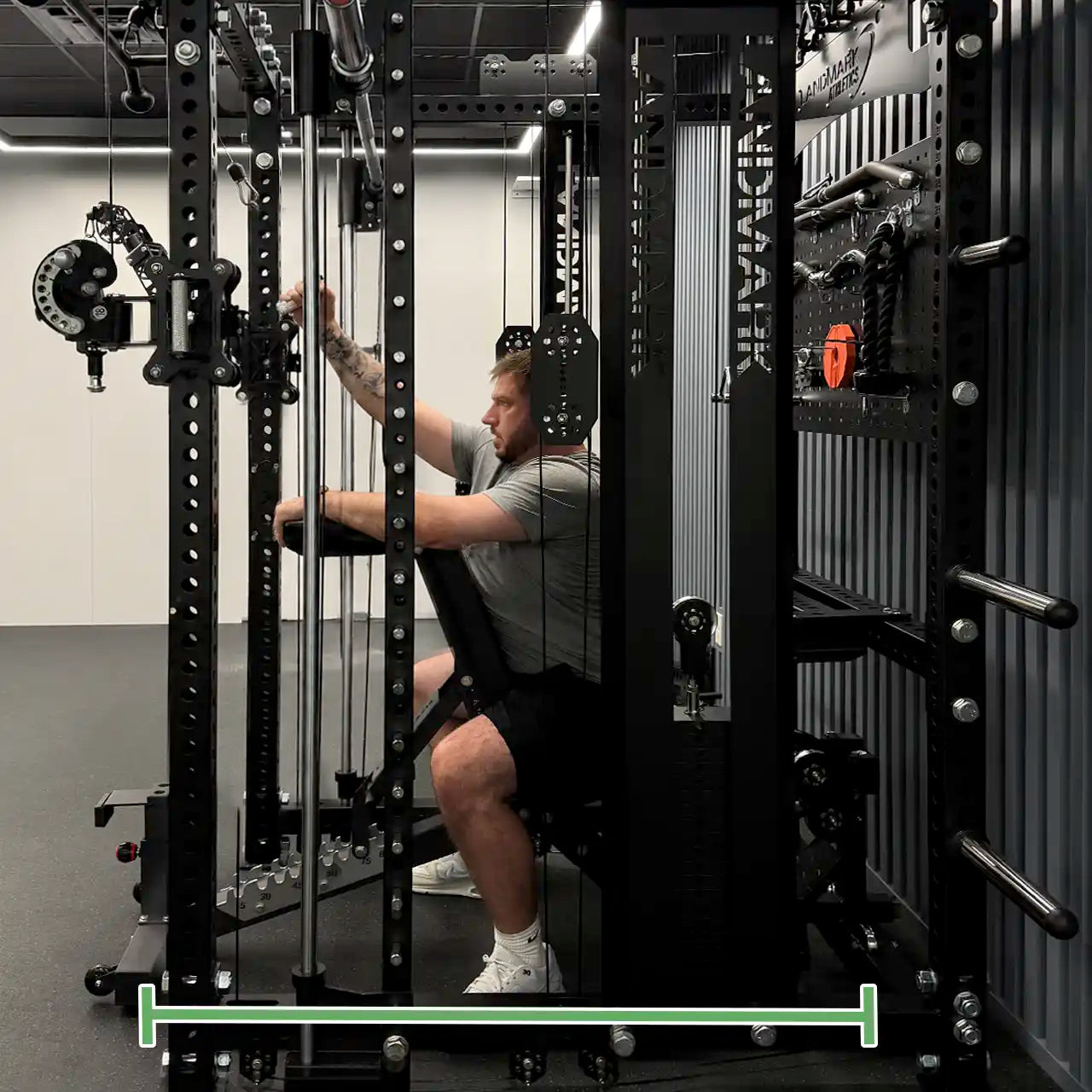

    The Bench Stays Where It Should.

    Setting up for incline press inside a rack requires enough rear depth to let the bench travel back. The Everest is built with that clearance. Most benches recline fully inside the frame. No repositioning between flat and incline.

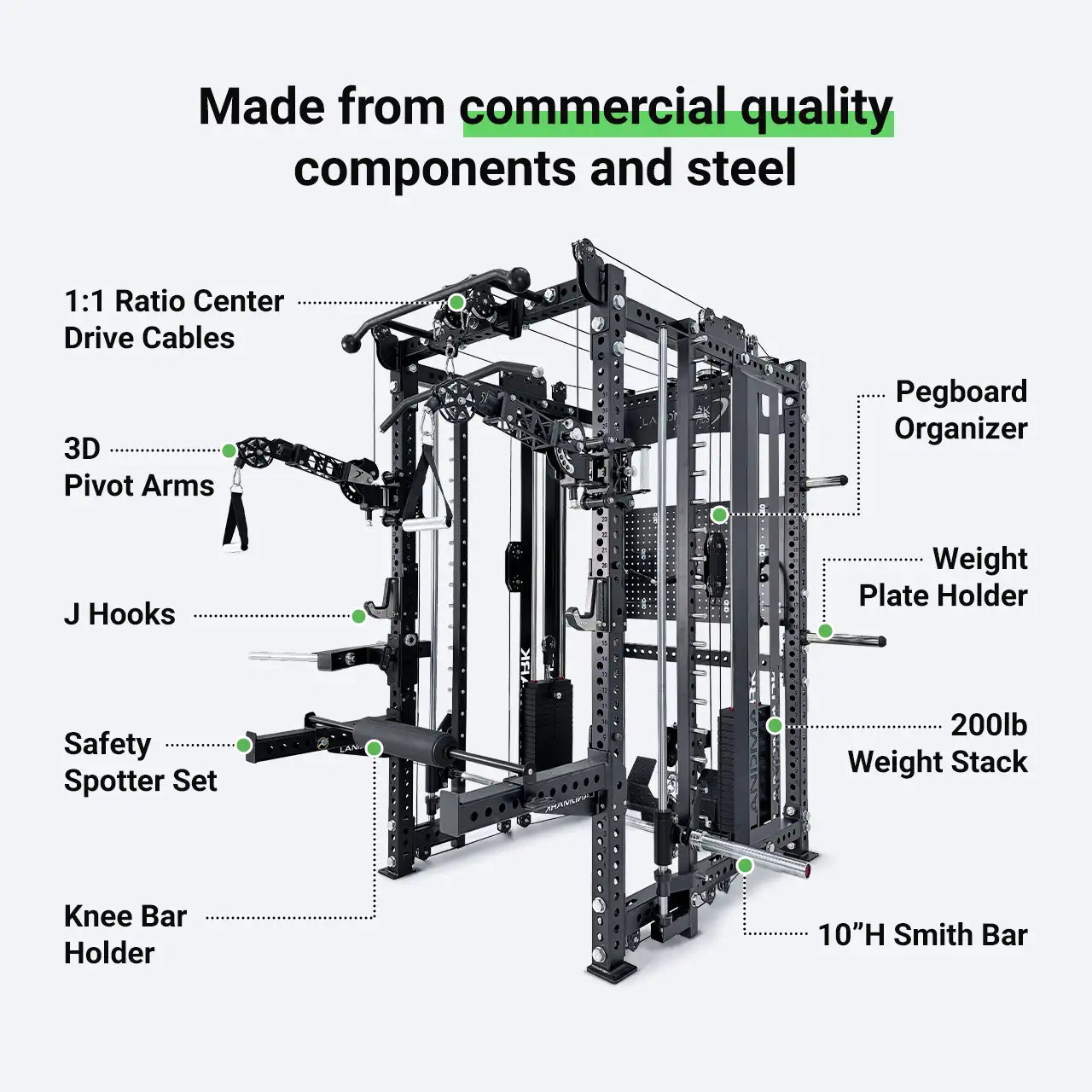

    Product Specification

    Product Specification

    • Steel:
      11 Gauge Steel throughout
    • Frame:
      3"x3" with 1" holes spaced 2" apart (75mm x 75mm with 25mm holes spaced 50mm apart)
    • Weight Stacks:
      Steel 200lbs (90kg) per side, in 11lbs (5kg) increments. 17 plates + 1 head plate per side
    • Weight Ratio:
      2:1 Ratio Pivot arms, Hi/Lo Center Pulleys are 1:1 Ratio
    • Cables:
      2000lbs aircraft cables, 98" cable length
    • Pulleys:
      Aluminum with sealed bearing
    • Weight Capacity:
      Smith: 1400lbs, J-Hooks/Spotters: 1500lbs+
    • Smith Bar:
      58lbs, Linear Bearing with 18 positions
    • Smith Bar Height:
      Lowest - 10" from ground, Highest - 76" from ground
    • Internal Width:
      47"

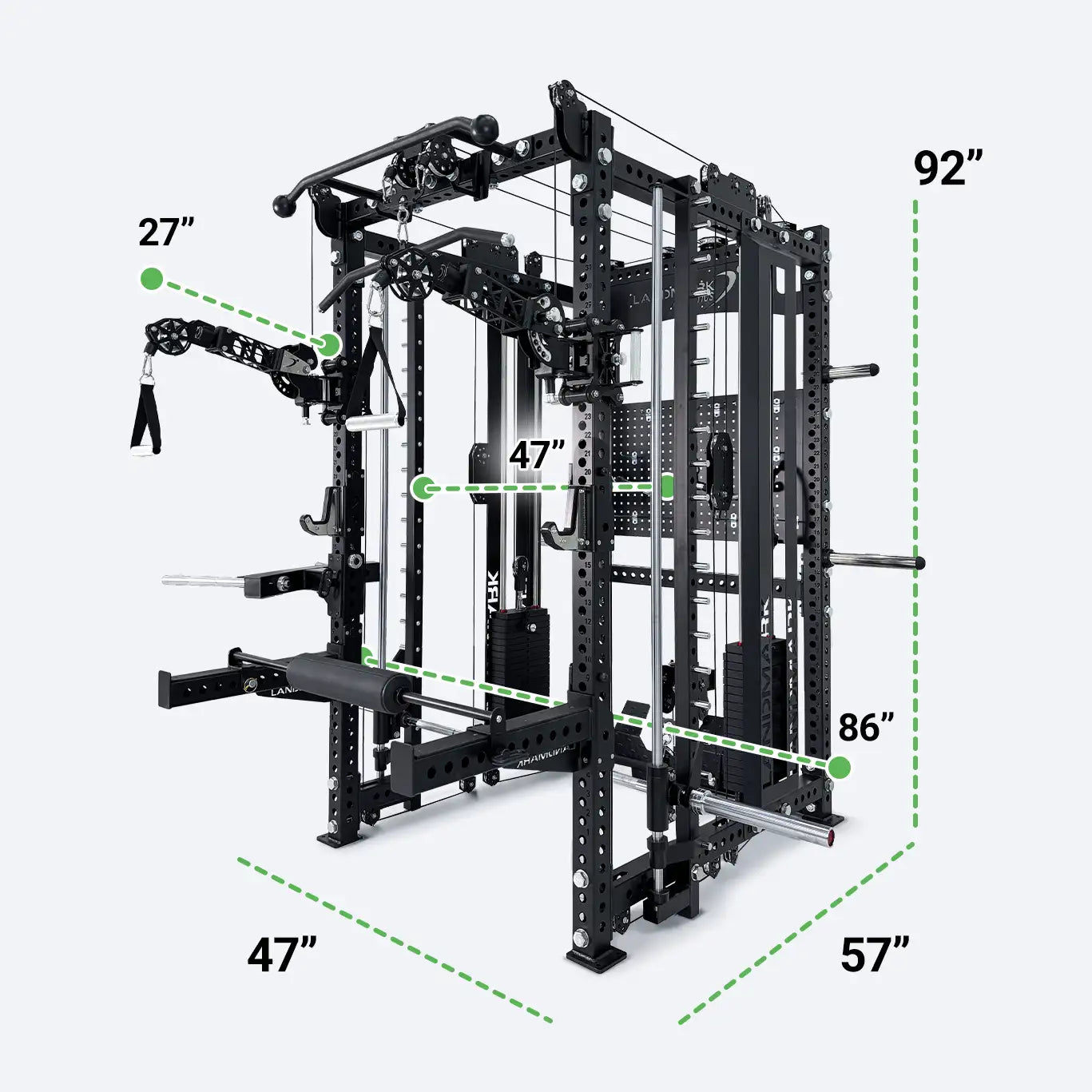

    • Rack Footprint:
      57"D x 47"W x 92"H
    • Squat Rack:
      Comes equipped to be used outside of the rack for free bar training

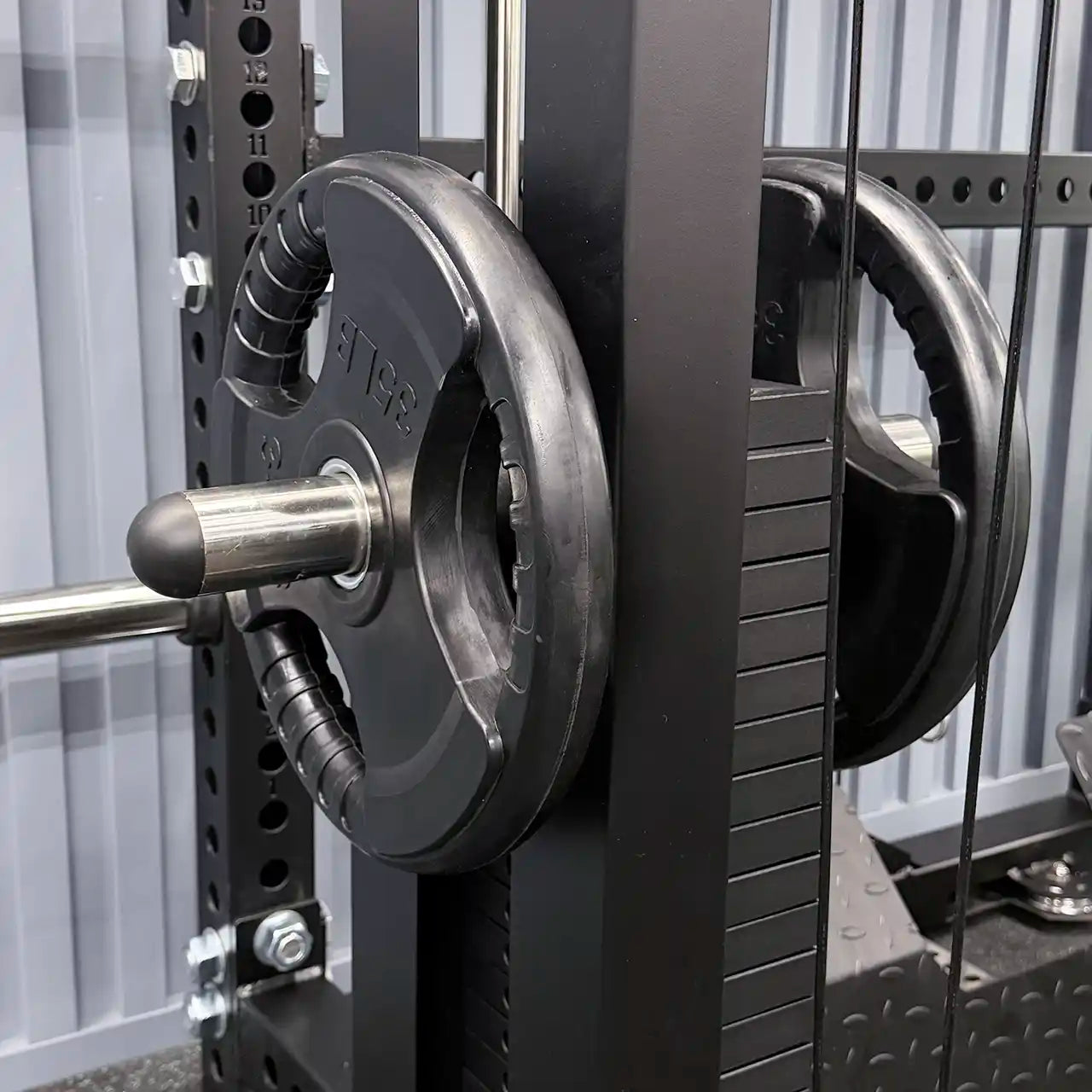

    • Storage:
      4 side positioned plate storage pegs. 1 Extra Large 24"x41" Peg board
    • Accessories:

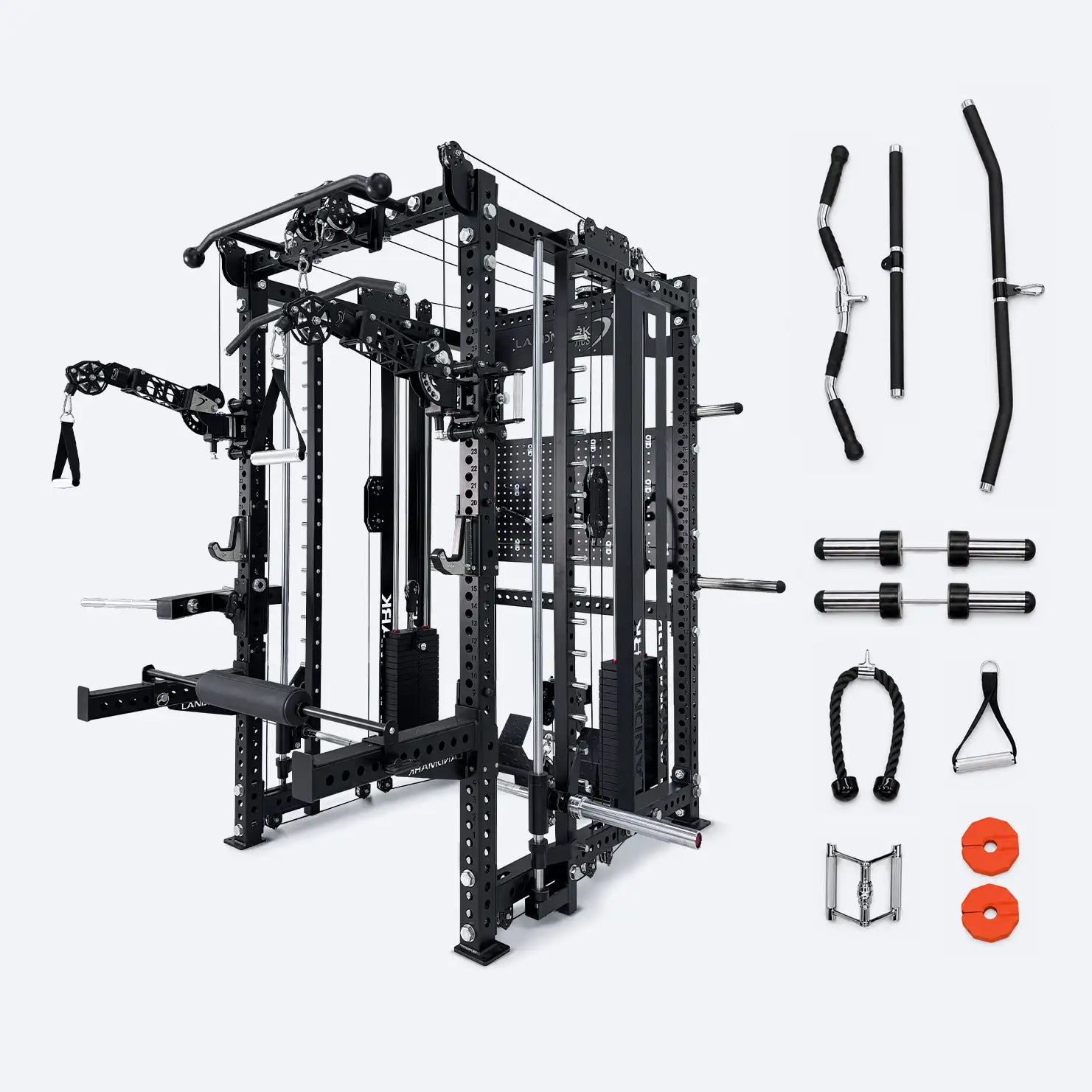

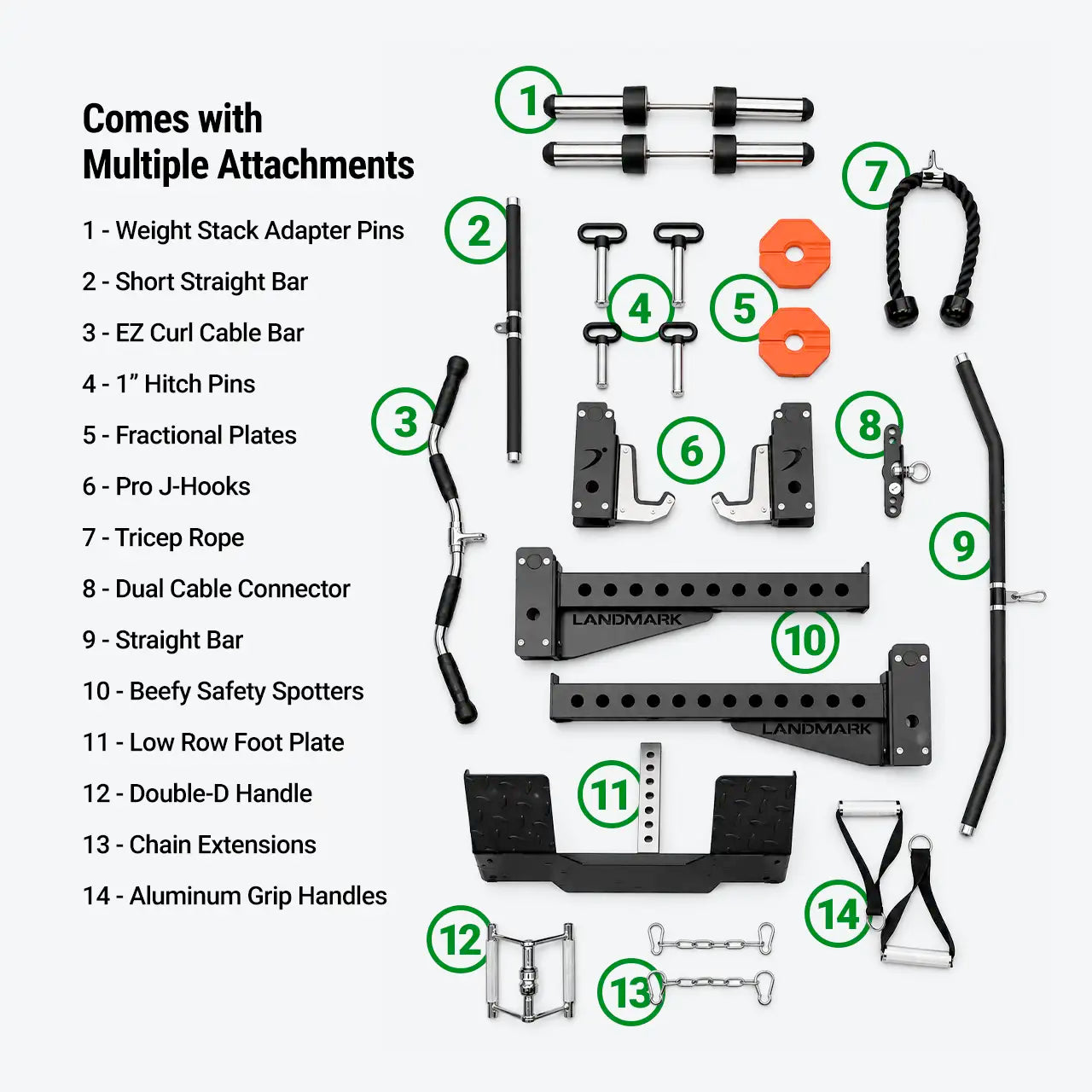

      2 Single D-Ring handles; Lat pull down bar; Short straight bar; 2 Extension chains; Pro J-Hook pair; Spotter arm pair; 2 Weight stack adapter pins; Peg Board storage; 2 Multi locking pivot arms, Revolving curl bar cable attachment, Double-D handle, 2 3lbs fractional donut plates, 2 cable linking clips, tricep rope, knee holder bar
    • Warranty:
      Lifetime residential warranty on manufacturer's defects. 3 year commercial warranty. 1 Year on wear items for either.
